SCHULZ V-SERIES THREE PHASE 7.5HP 80-GALLON-30 CFM – 230/460 VOLTS- TWO-STAGE AIR COMPRESSOR 7580VV30X-3 VERTICAL
<img src="https://www.webgranitesupplies.com/v/vspfiles/photos/7580vv30x-3-2T.png" alt="Schulz 7.5HP Three Phase Air Compressor with WEG electric motor and V-Series cast iron pump, built for commercial duty performance">

Alternative Views:
Our Price: $3,040.00


Product Code: 7580VV30X-3
This order requires a shipping method that is not available online at this time. Please call customer service at 239 344-9128 to place your order.

Informations

Informations

  • Details

    • WEG Electric Motor
    • 460-480 Volts Three phase WEG motor
    • 7.5 HP motor reliably handles commercial duty demands

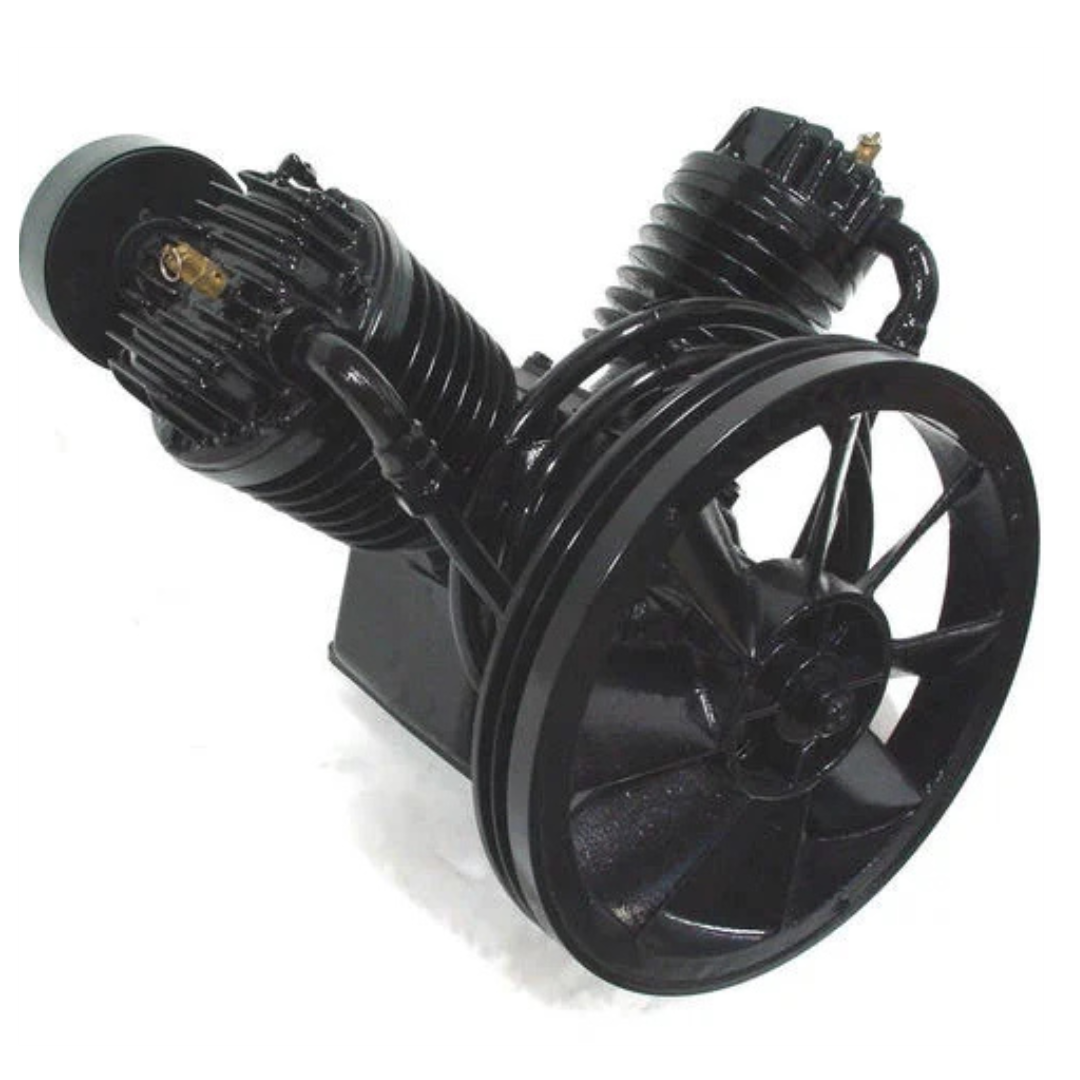

    • V-Series Cast Iron Pump
    • Runs cooler, lasts longer due to the space between each cylinder
    • Deeper cylinder fins for additional heat dissipation
    • Oversized Main Bearings
    • Sturdy & reliable
    • Swedish Steel Valves
    • Quality components contribute to pump efficiency
    • CNC Machined Components
    • Accurate fit produces top-notch performance
    • Notched Belts Standard
    • Enclosed belt guard protects the belt & operators
    • Powder Coated Components
    • Resist rust & corrosion
    • 1 Year Unit With 2 Year Pump Warranty
    • Protects your investment

    Product CategoryAir Compressor – Stationary

    MOTOR

    Voltage230/460 Volt AC
    PhaseThree Phase
    Magnetic StarterYes
    Amp DrawConsult Certified Electrician
    Recommended BreakerConsult Certified Electrician

    ENGINE

    HP7.5

    PUMP

    CFM30
    CFM Rated @175 PSI
    Pump MaterialSolid Cast Iron
    Max PSI175 PSI
    Oil Sight GlassYes
    Pump TypeTwo-Stage
    After CoolerYes
    Pump DriveBelt Drive
    Oil TypeOil Lubricated
    Oil SystemSplash Lubricated
    Pump Low Oil Shut-offNo

    TANK

    Tank Size80 Gallons
    Tank Outlet1/2 Inch
    Electronic Drain ValveNo
    Tank OrientationVertical

    OVERVIEW

    Weight565 Pounds
    CertificationASME
    Consumer Warranty1 Year
    Commercial Warranty1 Year
    Product Length39.3 Inches
    Product Width25.2 Inches
    Product Height39.3 Inches
