cod. 932.9363-0

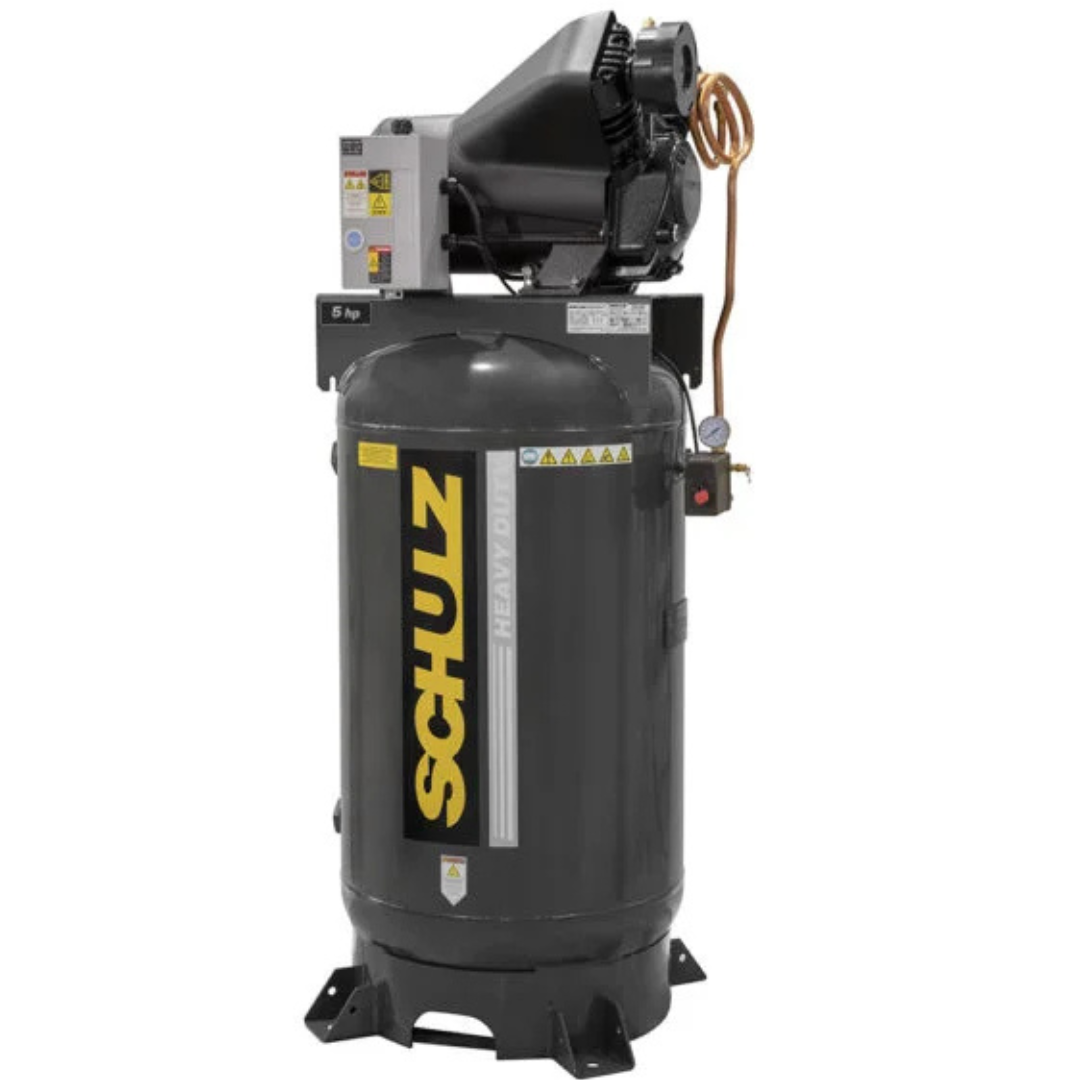

MCSV20 AP AUDAZ DIRECT DRIVE 230 VOLTS THREE PHASE
- SCHULZ AUDAZ MCSZ 5-HP DIRECT COUPLING AIR COMPRESSOR

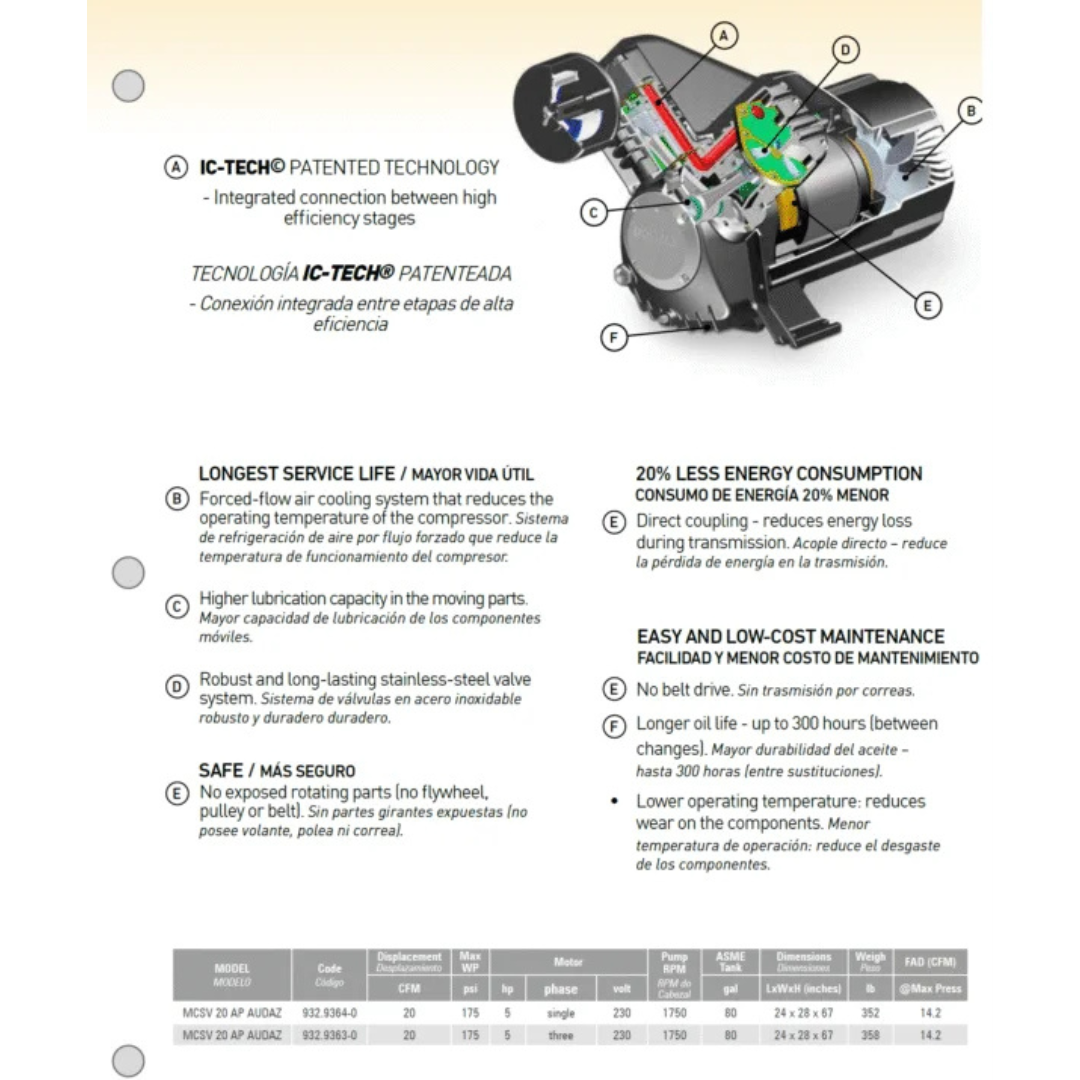

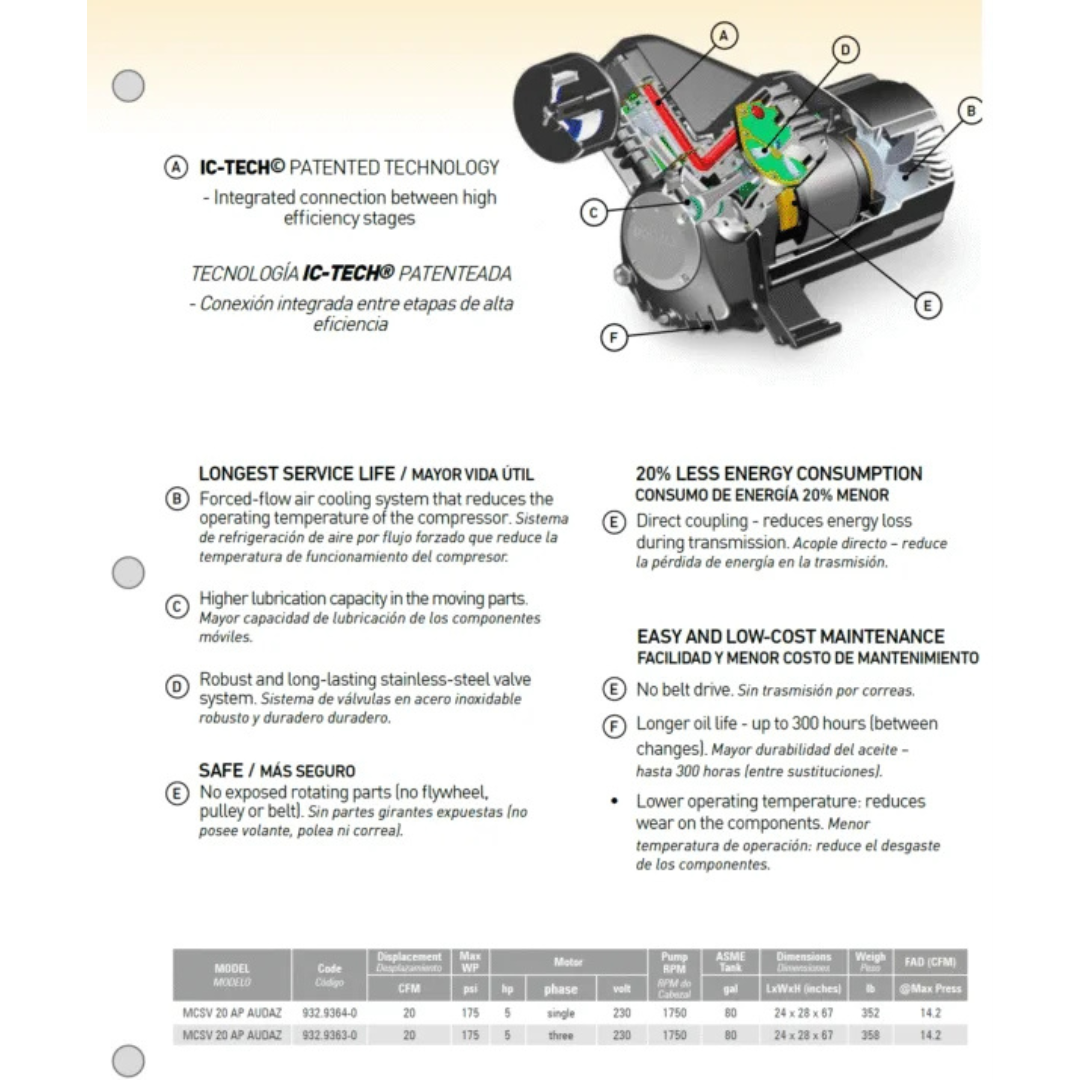

IC-TECH® PATENTED TECHNOLOGY
Integrated connection between high efficiency stages
DIRECT COUPLING DESIGN – 20% LESS ENERGY CONSUMPTION
Integrated pump and motor reduces energy loss
Higher lubrication capacity in the moving parts
FORCED-FLOW AIR COOLING SYSTEM
Plastic motor/pump cover increases cooling efficiency
Reduces operating temps for longer service life
NO BELT, FLYWHEEL OR PULLEY
Allows for safer operation
LONGER OIL LIFE FOR LESS MAINTENANCE
Up to 300 hours between oil changes
WEG ELECTRIC MOTOR (230V – 3 PHASE)
5 HP motor reliably handles commercial duty demands
CAST IRON TWO-STAGE PUMP
Runs cooler, lasts longer due to the space between each cylinder
Deeper cylinder fins for additional heat dissipation
80-GALLON ASME CODED VERTICAL AIR RECEIVER
Includes manual tank drain
SWEDISH STEEL VALVES & CNC MACHINED COMPONENTS
Quality components contribute to pump efficiency
Accurate fit produces top-notch performance
POWDER COATED COMPONENTS
Resist rust & corrosion
2-YEAR PUMP & 1-YEAR UNIT WARRANTY
*Always consult your electrician for proper installation and proper wiring
| Product Category | Air Compressor – Stationary |
MOTOR
| Voltage | 230 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | Consult Certified Electrician |
ENGINE
PUMP
| CFM | 20 |
| CFM Rated @ | 175 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Oil Sight Glass | No |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Direct Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
TANK
| Tank Size | 80 Gallons |
| Tank Outlet | 1/2 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Vertical |
ACCESSORIES
| Pressure Gauge | Yes |
| Air Dryer | No |
OVERVIEW
| Weight | 480 Pounds |
| Certification | ASME |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 24 Inches |
| Product Width | 28 Inches |
| Product Height | 67 Inches |
| Power Type | Electric |
